Lux Bluetooth Speaker
In semester 2 of 2019 we were tasked with creating a Bluetooth speaker, paying special attention to making sure it was designed for manufacture. The speaker I designed was to be made from off-the-shelf electronic and injection moulded components. The manufacturing details are highlighted in the presentation boards.
The analogue renders for the concept and final design were created using pencils and Copic markers on bond paper. The presentation model was created using 3D printed PLA, of-the-shelf speaker components, and acrylic spray paint. The CAD model for the Lux Bluetooth Speaker was created in Autodesk Fusion 360 and rendered in KeyShot. The presentation boards were created using Adobe Illustrator.
Final CAD model of the Lux Bluetooth Speaker with materials applied. CAD model created using Autodesk Fusion 360.
Render of the final CAD model of the Lux Bluetooth Speaker with materials applied. Render created using Autodesk Fusion 360.
One of the final renders of the Lux Bluetooth speaker. Render created using KeyShot.
One of the final renders of the Lux Bluetooth speaker. Render created using KeyShot.

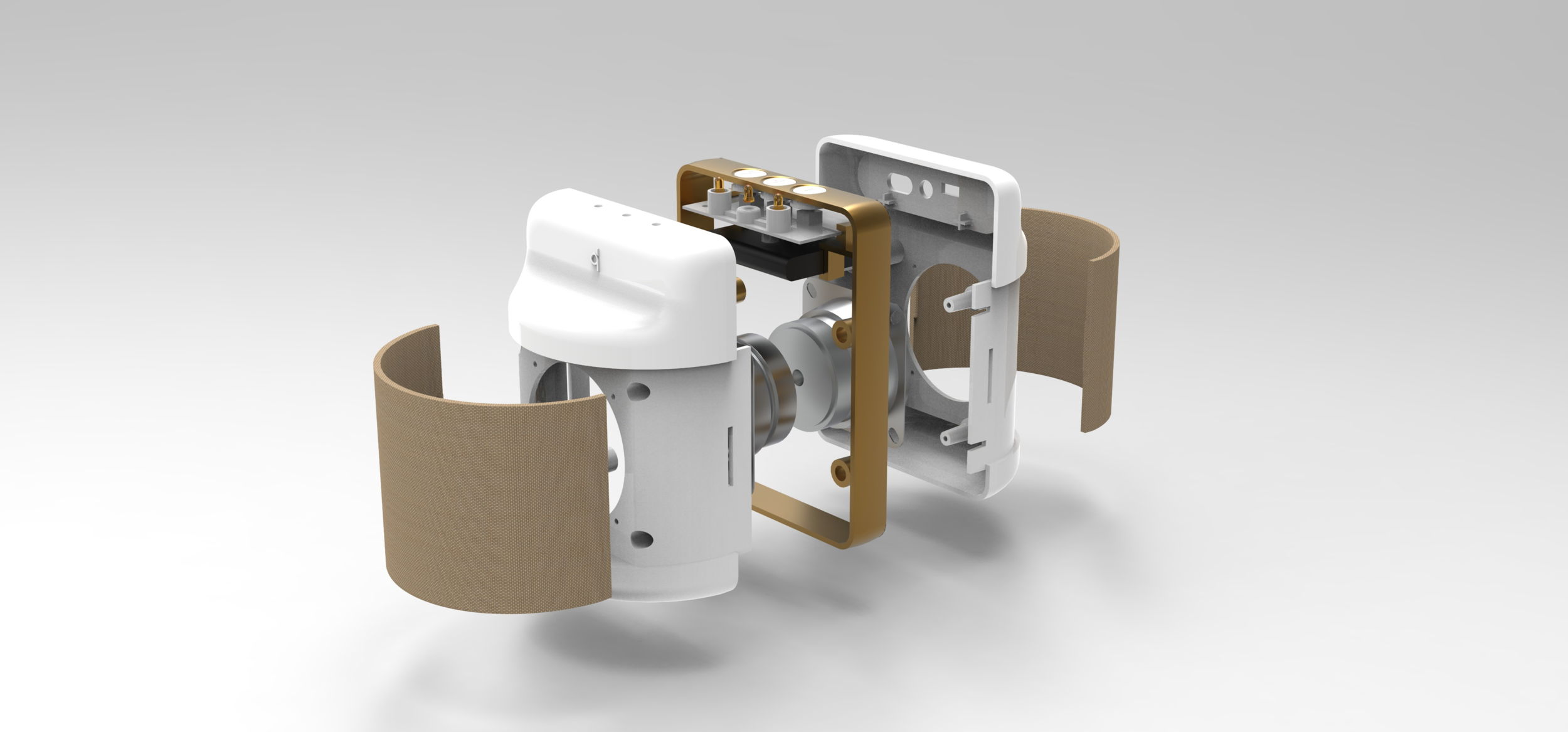

One of the final renders, an exploded view of the Lux Bluetooth speaker. Render created using KeyShot.
Some quick concept renders exploring different possible shapes for the speaker.
Exploring the preferred concept further in terms of manufacturing details.
An analogue render of the final concept exploded view. This render was used to highlight the manufacturing and assembly details.

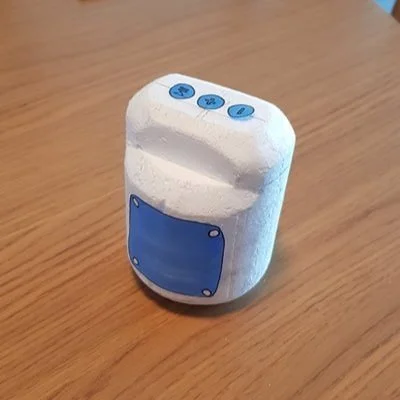

One of the rapid prototypes created using polystyrene foam and coloured paper.

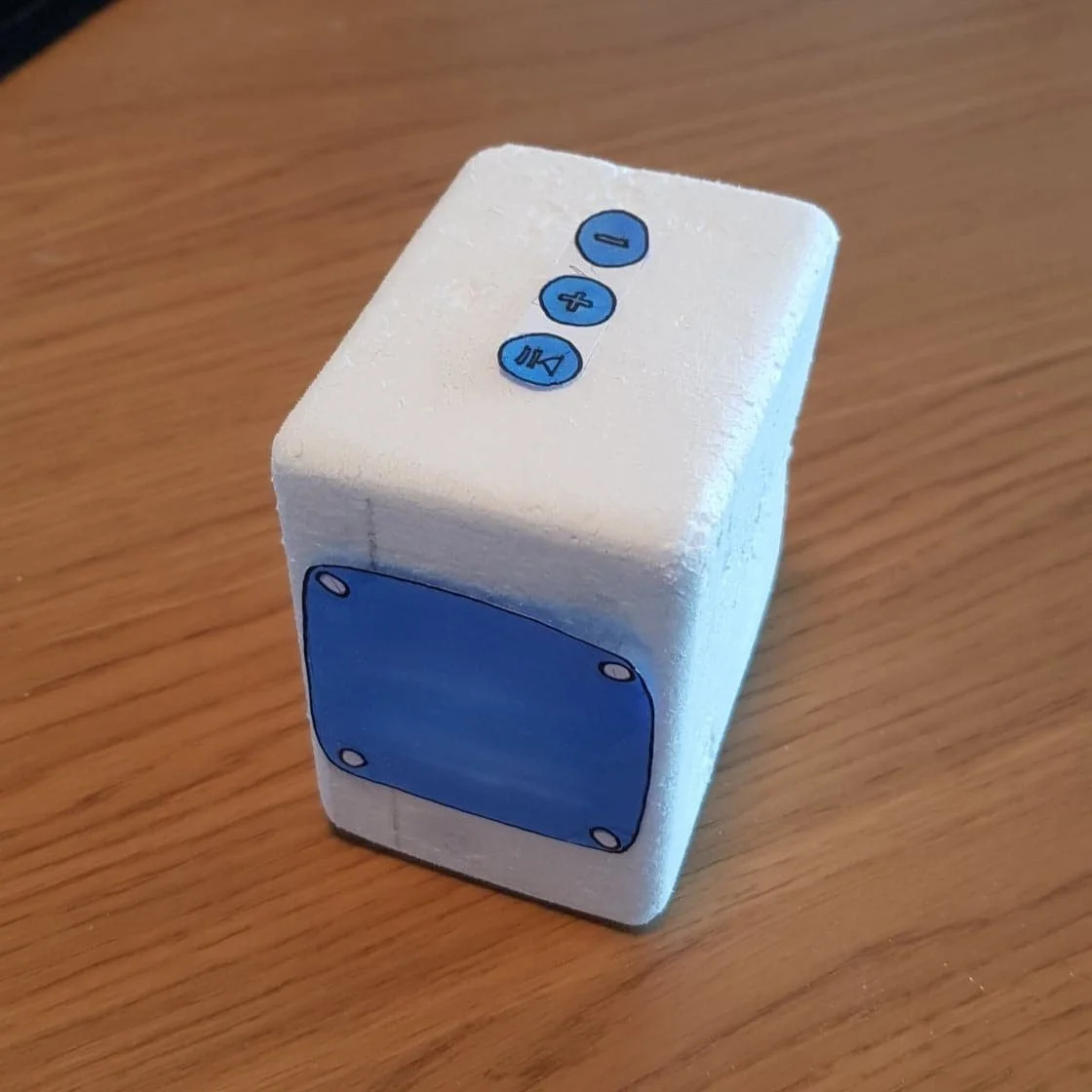

One of the rapid prototypes created using polystyrene foam and coloured paper.
One of the rapid prototypes created using polystyrene foam and coloured paper.
The final presentation model, created using 3D printing.
A presentation board highlighting the manufacturing details of the Lux Bluetooth speaker. Created using Adobe Illustrator.
A presentation board highlighting the manufacturing details of the Lux Bluetooth speaker. Created using Adobe Illustrator.
A presentation board highlighting the manufacturing details of the Lux Bluetooth speaker. Created using Adobe Illustrator.
